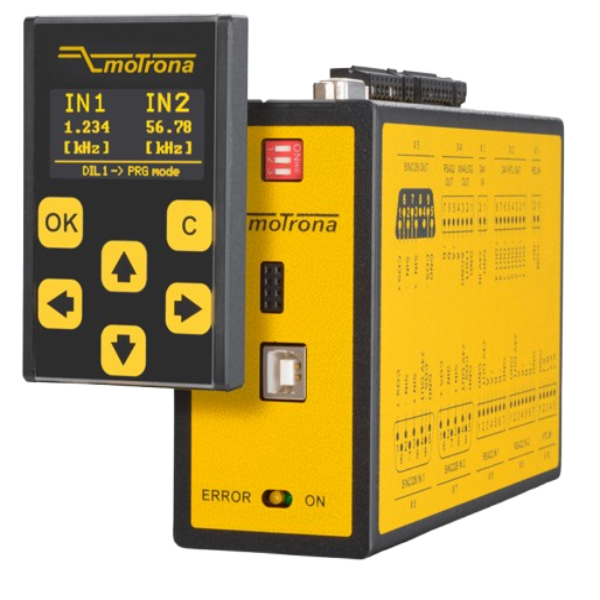

Safety Motion Monitor DS230
SKU: DS230
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A dependable and adaptable tool for safety-related monitoring duties in industrial settings is the Motrona DS230 Certified Safety Monitor.
It can be used to link sine-cosine encoders, one-track HTL encoders, and incremental sensors with RS422 output (differential signals A, /A, B, /B).
The DS230 is a complete solution for a range of safety monitoring requirements because it has a relay, four transistor outputs, one analog output, and a signal distributor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Encoder Inputs:
2 encoder inputs with format SIN+, SIN-, COS+, COS- [1 Vss].
2 pulse inputs with format A, /A, B, /B [RS422].
2 pulse or control inputs with format A, B, 90° [HTL / PNP] (for rotary encoder, proximity switches, or commands).
Input Frequency: Up to 500 kHz.
Outputs:
Forced-guided redundant output relay (NO).
4 control outputs with push-pull characteristic, short-circuit-proof, [HTL], each inverse and redundant.
Safety-related 14-bit analog output for 4 ... 20 mA (scalable).
Signal Splitter: Included.
Power Supply: 18 ... 30 V.
Housing: Compact housing for 35 mm mounting top hat rail (according to EN 60715).
Setup: Via USB port by operator software or plug-in display and programming unit BG230 (accessories).
Safety Functions: Equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM, SLI, SBC, STO, SMS).
Certification: SIL3 and PLe certification.
