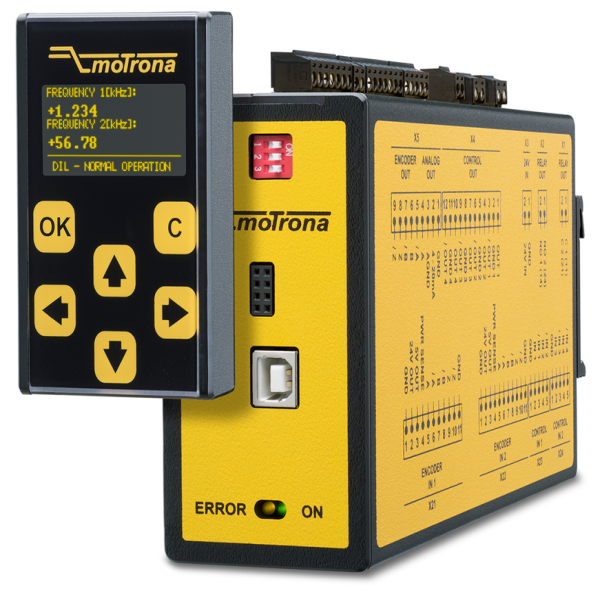

Safety Motion Monitor DS260
SKU: DS260
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial applications, the Motrona DS260 Safety Speed Monitor is made to keep an eye on speed and guarantee safety.
It offers dependable performance and strict safety standards, making it appropriate for use with incremental encoders and sensors.
The DS260 is a reliable option for safety-critical settings since it obtains SIL3/PLe certification when paired with a SIL3/PLe certified sensor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Encoder Inputs:
1 incremental input with format A, /A, B, /B, Z, /Z [HTL differential, HTL single-ended, RS422]
Control Inputs: 8 control inputs [HTL / PNP]
Input Frequency: Up to 500 kHz
Outputs:
2 relay outputs (5...250 VAC / VDC, NO)
4 x 2 control outputs with push-pull characteristic, short-circuit-proof [HTL], antivalent or equivalent redundant
Safety-related 14-bit analog output for 4 ... 20 mA (scalable)
Signal Splitter: Included
Power Supply: 18 ... 30 V
Housing: Compact housing for 35 mm mounting top hat rail (according to EN 60715).
Setup:
Via USB interface in combination with the user interface OS6.0 for parameterization
Optional BG200 operator panel for easy parameterization and display
Safety Functions: Equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM, SLI, SBC, STO, SMS).
Certification: SIL3 and PLe certification.
