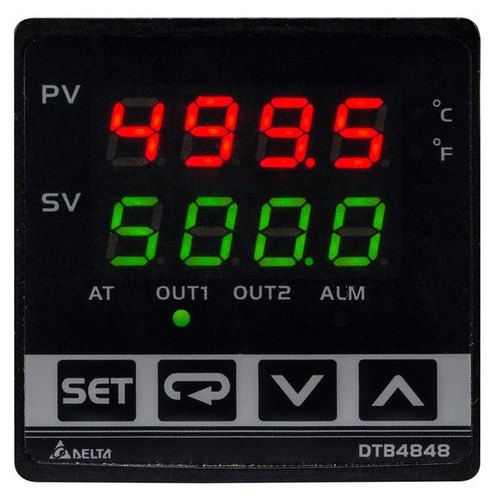

DTB TEMPERATURE CONTROLLER RELAY-RELAY OUTPUT +2I/P (48 x 48)
SKU: DTB4848RRE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
DTB series "advanced" temperature controller: Unlike DTA series, DTB has dual output control and linear voltage signal output in addition to being able to execute heating and cooling controls in a temperature control system concurrently and quickly attain the desired temperature.
Three sets of alarm outputs; two sets of outputs to automatically adjust two sets of PID parameters; analogue input sampling rate of 0.15 seconds, thermocouple or platinum RTD sampling rate of 0.4 seconds; integrated dual loop output control for heating and cooling (RS485 digital communication, 2.400 - 38.400bps)
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: DTB series
SUPPLY VOLTAGE: 100 - 240 VAC
FREQUENCY: 50/60 Hz
INDEX PROTECTION IP: IP65
PANEL SIZE (MM): W X H 48 x 48
THERMOCOUPLE: Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100
DESCRIPTION: Event input with 2 setpoints (Event function, permits switching between 2 different temperatures set points)
LCD DISPLAY: Process Value (PV) Red colour - Set point (SV) Green colour
OUTPUT 1: Relay
OUTPUT 2: Relay
