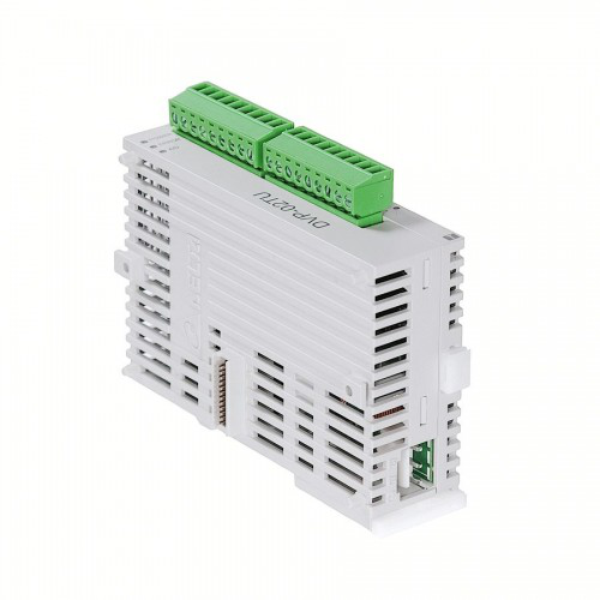

ANALOGUE TEMP CONTROLLER
SKU: DVP02TUL-S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SS, SA, SE, SX, SV, and MC series PLCs from Delta Electronics are compatible with the DVP02TUL-S analogue temperature controller.
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective temperature management in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SS, SA, SE, SX, SV, and MC series PLCs.
Resolution: 16-bit.
Analog Inputs: 0-10V, 0-20mA, 4-20mA.
Thermocouple Types: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII.
RTD Types: PT100, JPT100, PT1000, CU50, CU100, NI100, NI1000, LG-NI1000.
Supply Voltage: 24VDC.
Inputs: 2.
Outputs: 2.
Mounting: Clips onto and derives supply from the main MPU.
Output Type: Analog output voltage/current.
Control: Built-in PID program control/manual control.
This temperature controller is perfect for applications requiring precise and reliable temperature control.
Specifications:
SUPPLY: 24 VDC
INPUTS : 2
OUTPUTS: 2
DESCRIPTION: Temperature control modules (universal input)
MOUNTING: Right side
OUTPUT TYPE: Analog Output voltage/current
