8DI+6DO 4AI+2AO 240VAC PLC RELAY

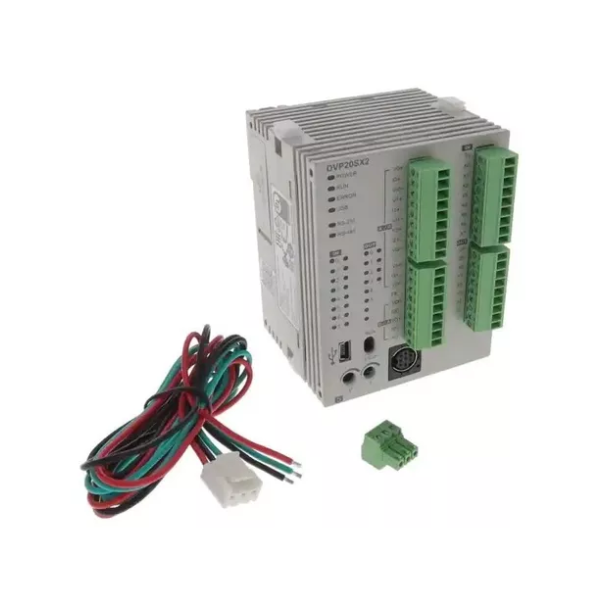

SKU: DVP20SX211R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Specifically designed for Delta Electronics' SX series, the DVP20SX211R is a 24VDC PLC relay module with 8DI+6DO (Digital Input/Output) and 4AI+2AO (Analog Input/Output).
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective digital and analog input and output in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SX series PLCs.
Digital Inputs: 8.
Digital Outputs: 6 (Relay).
Analog Inputs: 4.
Analog Outputs: 2.
Supply Voltage: 24VDC.
Mounting: DIN rail or chassis mount.
Communication Ports: Built-in RS232 and RS485.
Program Capacity: 16k steps.
Data Register: 10k words.
Execution Speed: LD: 0.35µs.
High-Speed Pulse Output: 2 x 100kHz and 2 x 10kHz.
High-Speed Counters: 2 x 100kHz and 6 x 10kHz.
Additional Features: Supports 2-axis linear and arc interpolation, built-in mini-USB, no battery required.
This module is perfect for applications requiring precise and reliable digital and analog input and output.
