8DI + 6DO + 4AI + 2AO PLC NPN
SKU: DVP20SX211T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

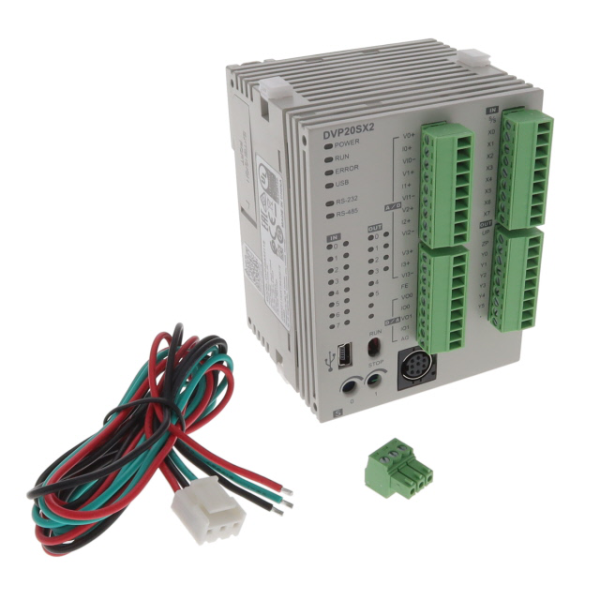

This DVP20SX211T PLC module is 8DI+6DO (Digital Input/Output), 4AI+2AO (Analog Input/Output), and 24VDC. It is made for the SX2 series of Delta Electronics.
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective digital and analog input and output in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SX2 series PLCs.
Digital Inputs: 8.
Digital Outputs: 6 (Transistor, NPN).
Analog Inputs: 4.
Analog Outputs: 2.
Supply Voltage: 24VDC.
Mounting: DIN rail or chassis mount.
Communication Ports: Built-in RS232 and RS485.
Program Capacity: 16k steps.
Data Register: 10k words.
Execution Speed: LD: 0.35µs.
High-Speed Pulse Output: 2 x 100kHz and 2 x 10kHz.
High-Speed Counters: 2 x 100kHz and 6 x 10kHz.
Additional Features: Supports 2-axis linear and arc interpolation, built-in mini-USB, no battery required.
This module is perfect for applications requiring precise and reliable digital and analog input and output.
