14I + 12O SE 24VDC RELAY OUTPUT
SKU: DVP26SE11R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

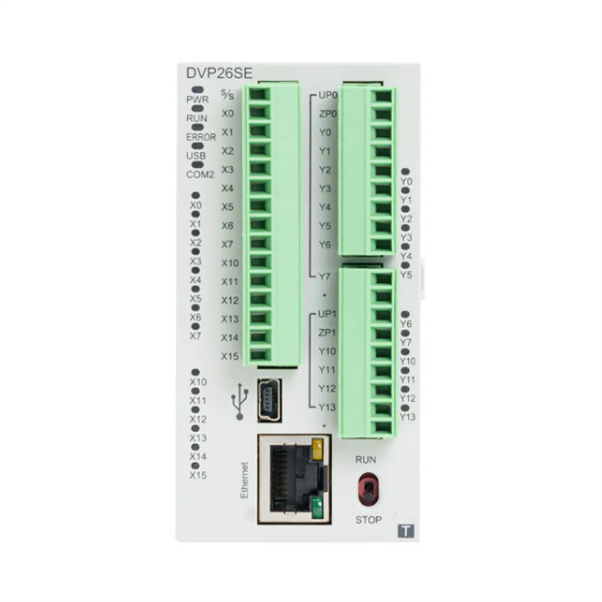

For Delta Electronics' SE series, the DVP26SE11R is a 14DI+12DO (Digital Input/Output) 24VDC PLC module.
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective digital input and output in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SE series PLCs.
Digital Inputs: 14.
Digital Outputs: 12 (Relay).
Supply Voltage: 24VDC.
Mounting: DIN rail or chassis mount.
Communication Ports: Built-in mini-USB, Ethernet, and 2x RS485.
Program Capacity: 16k steps.
Data Register: 12k words.
Execution Speed: LD: 0.64µs, MOV: 2µs.
High-Speed Pulse Output: 4 sets (2 x 100kHz and 2 x 10kHz).
High-Speed Counters: 8 sets (2 x 100kHz and 6 x 10kHz).
Additional Features: Supports 2-axis linear and arc interpolation, IP filter function for network security, no battery required (RTC operates for 15 days after power off).
This module is perfect for applications requiring precise and reliable digital input and output.
