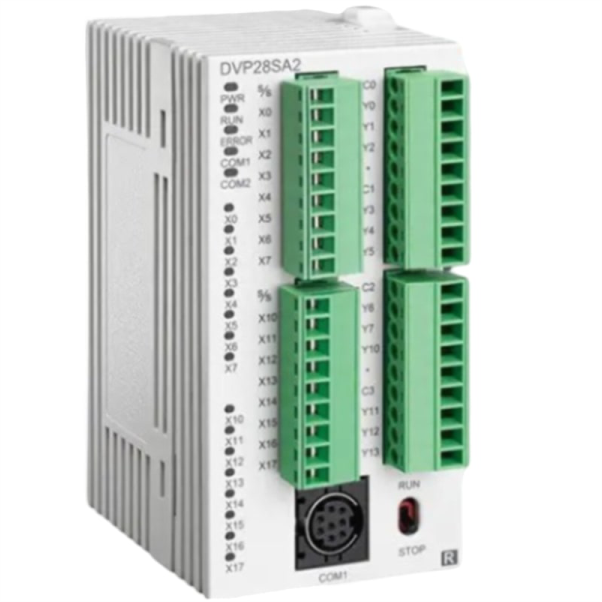

16I+12O SA2 24VDC TRAN. OUTPUT
SKU: DVP28SA211T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Designed for Delta Electronics' SA2 series, the DVP28SA211T is a 16DI+12DO (Digital Input/Output) 24VDC PLC module.
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective digital input and output in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SA2 series PLCs.
Digital Inputs: 16.
Digital Outputs: 12 (Transistor, NPN).
Supply Voltage: 24VDC.
Mounting: DIN rail or chassis mount.
Communication Ports: Built-in RS232 and RS485.
Program Capacity: 16k steps.
Data Register: 10k words.
Execution Speed: LD: 0.35µs.
High-Speed Pulse Input: 8 points (X0~X3: 100kHz, X4~X7: 10kHz).
High-Speed Pulse Output: 4 sets (2 x 100kHz and 2 x 10kHz).
High-Speed Counters: 8 sets (2 x 100kHz and 6 x 10kHz).
Additional Features: Supports 2-axis linear and arc interpolation, no battery required.
This module is perfect for applications requiring precise and reliable digital input and output.
