16DI+12DO SV 24VDC PLC REL
SKU: DVP28SV11R2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

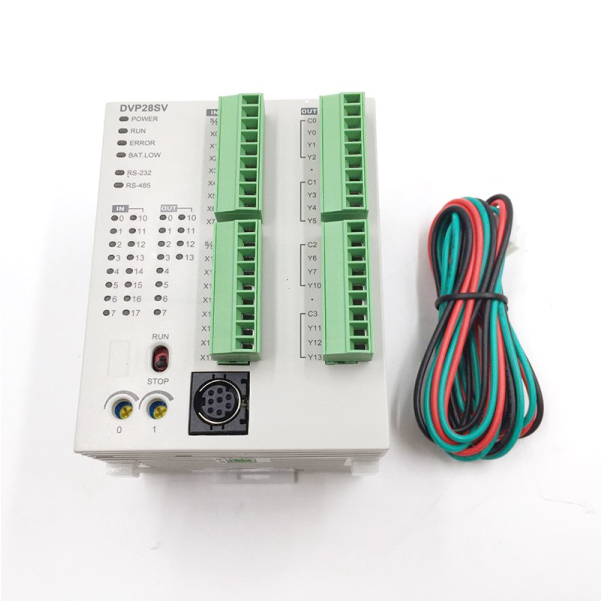

Designed for Delta Electronics' SV2 series, the DVP28SV11R2 is a 16DI+12DO (Digital Input/Output) 24VDC PLC module.
This module improves the overall performance and accuracy of your setup by guaranteeing accurate and effective digital input and output in automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: SV2 series PLCs.
Digital Inputs: 16.
Digital Outputs: 12 (Relay).
Supply Voltage: 24VDC.
Mounting: DIN rail or chassis mount.
Communication Ports: Built-in RS232 and RS485.
Program Capacity: 30k steps.
Data Register: 12k words.
Execution Speed: LD: 0.24µs.
High-Speed Pulse Output: 4 axes of 200kHz pulse outputs.
High-Speed Counters: 2 hardware 200kHz and 2 hardware 20kHz high-speed counters.
Additional Features: Supports 2-axis linear and arc interpolation, auto backup function preventing loss of programs and data even if the battery runs out.
This module is perfect for applications requiring precise and reliable digital input and output.
