8 PORT ETHERNET UM SWITCH
SKU: DVS-008W01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

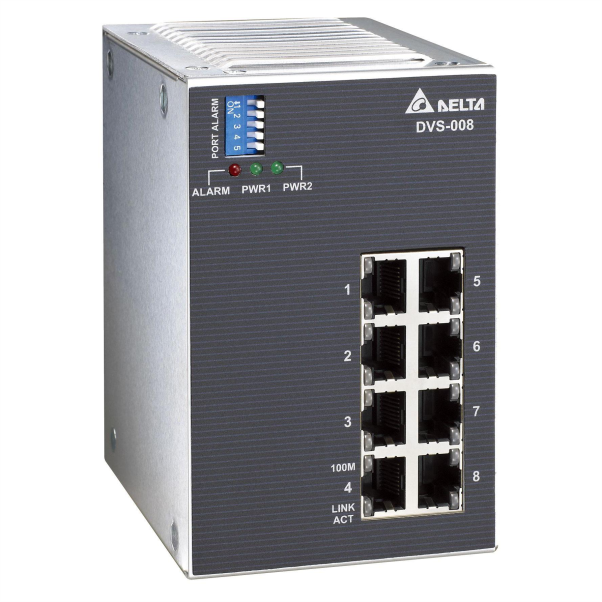

Designed for industrial use, the DVS-008W01 is an 8-port unmanaged Ethernet switch.
This switch improves the overall performance and accuracy of your setup by guaranteeing dependable and effective network connectivity in challenging and dangerous conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: Supports IEEE 802.3/802.3u/802.3x standards.
Ports: 8 RJ45 ports with 10/100Base-T(X), auto MDI/MDI-X, and auto negotiation.
Power Input: 12 to 48 VDC redundant terminal block power input.
Housing: IP40 aluminium metal case.
Mounting: Industrial DIN-rail and wall mounting.
Operating Temperature: -40°C to 75°C.
Alarm Contact: Yes, for link-down and power failure.
Switching Capacity: 1.6Gbps, non-blocking switching fabric.
Forwarding Rate: 2.4Mpps.
MAC Address Table: 8K.
Packet Buffer Memory: 1M bits.
This switch is perfect for applications requiring precise and reliable network communication.
