16 PORT ETHERNET UM SWITCH 1XM
SKU: DVS-016W01-MC01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

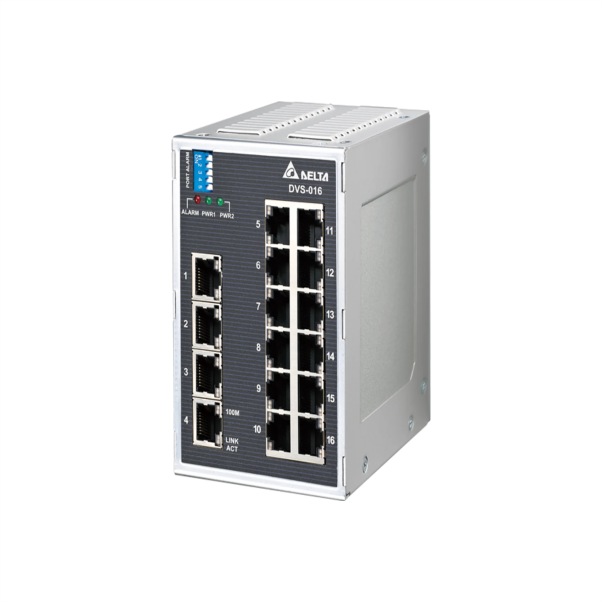

Designed for industrial use, the DVS-016W01-MC01 is a 16-port unmanaged Ethernet switch with one multimode fiber connector.
This switch improves the overall performance and accuracy of your setup by guaranteeing dependable and effective network connectivity in challenging and dangerous conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: Supports IEEE 802.3/802.3u/802.3x standards.
Ports: 16 RJ45 ports with 10/100Base-T(X), auto MDI/MDI-X, and auto negotiation.
Fiber Optic Port: 1 100Base-FX (SC connector) Multimode, 5 km.
Power Input: 12 to 48 VDC redundant terminal block power input.
Housing: IP40 aluminium metal case.
Mounting: Industrial DIN-rail and wall mounting.
Operating Temperature: -40°C to 75°C.
Alarm Contact: Yes, for link-down and power failure.
Switching Capacity: 3.2Gbps, non-blocking switching fabric.
Forwarding Rate: 4.8Mpps.
MAC Address Table: 1K.
Packet Buffer Memory: 512K bits.
This switch is perfect for applications requiring precise and reliable network communication.
