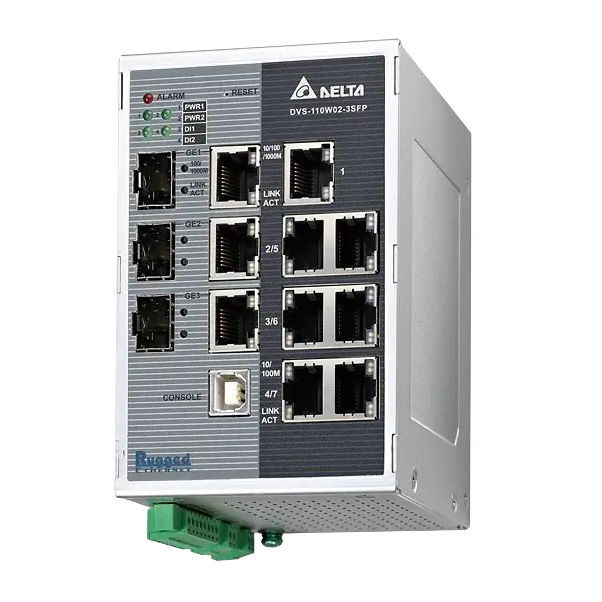

MANAGED ETHERNET SWITCH
SKU: DVS-110W02-3SFP
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A managed Ethernet switch made for industrial use is the DVS-110W02-3SFP.
This switch improves the overall performance and accuracy of your setup by guaranteeing dependable and effective network connectivity in challenging and dangerous conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Compatibility: Supports IEEE 802.3/802.3u/802.3x standards.
Ports: 7 RJ45 ports with 10/100Base-T(X), auto MDI/MDI-X, and auto negotiation, plus 3 SFP ports.
Power Input: 12 to 48 VDC redundant terminal block power input.
Housing: IP40 aluminium metal case.
Mounting: Industrial DIN-rail and wall mounting.
Operating Temperature: -40°C to 75°C.
Alarm Contact: Yes, for link-down and power failure.
Switching Capacity: 7.4Gbps, non-blocking switching fabric.
Forwarding Rate: 11Mpps.
MAC Address Table: 8K.
Packet Buffer Memory: 512K bits.
Management: High-end Layer 2 management, redundant self-healing ring, and intuitive WEB GUI interface.
Protocols: Supports EtherNet/IP, Profinet, EtherCAT, CC-LINK IE, DNP 3.0, STP/RSTP/MSTP for network redundancy, and enhanced network security with IEEE 802.1X, TACACS+, SSH, HTTPS, and SNMP v3.
This switch is perfect for applications requiring precise and reliable network communication.
