Small-sized Tachometer and Frequency Counter DX020
SKU: DX020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

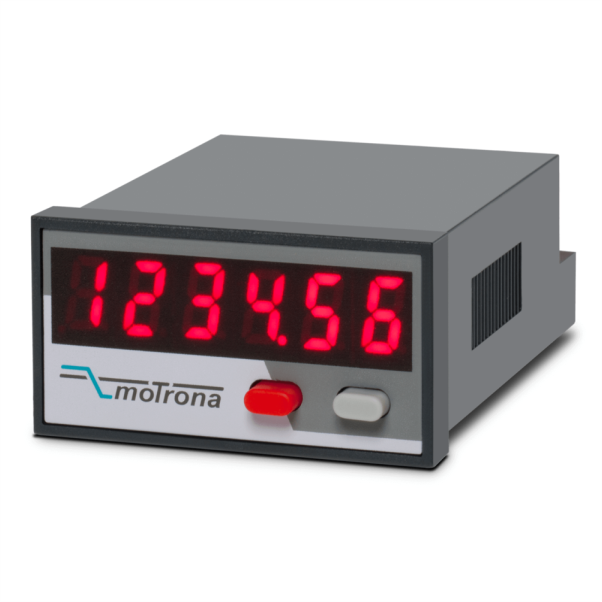

A small and multipurpose tachometer and frequency counter, the Motrona DX020 is made for accurate measurement and control in a range of industrial settings.
For installations where great performance is needed but space is at a premium, this compact device is perfect.
The DX020 has multiple working modes, a clear LED display, and front-side keys for easy menu access.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Input: Single channel pulse input [HTL].
Input Frequency: Up to 20 kHz.
Programmable Input Filter: For mechanical input contacts.
Power Supply: 24 VDC.
Housing: Miniature norm panel housing.
Display: 6 digits LED display with 8 mm height.
Display Range: -199999 to 999999.
Dimensions: 48 x 24 x 59 mm (1.89 x 0.94 x 2.32 inches).
