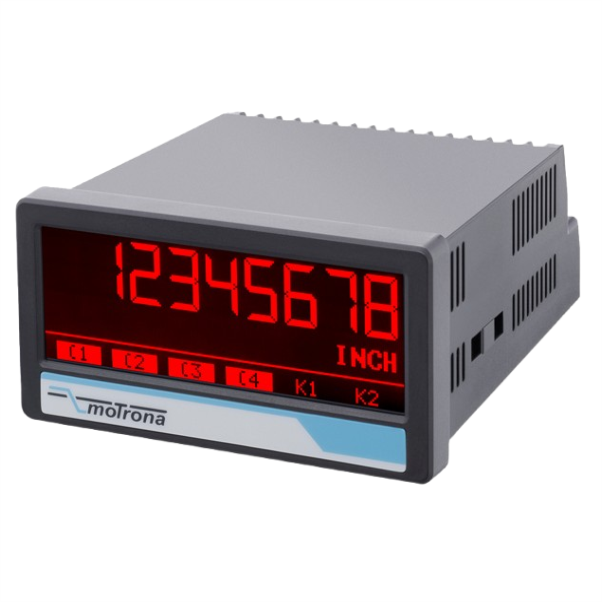

TouchMATRIX® Digital Indicator (HTL) DX350
SKU: DX350
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Motrona DX350 touchMATRIX® Digital Indicator is a multipurpose and adaptable device made for a range of industrial uses.
It is quite versatile and easy to use because to its dual-line graphic display and touchscreen.
The DX350 can handle a variety of input signals since it has universal HTL inputs for encoders and sensors with NPN, PNP, or NAMUR characteristics.
Its bright, high-contrast display improves visibility and use by displaying text, symbols, and units in red, green, and yellow depending on the event.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Input: Format A, B, 90° [HTL], single channel as an option.
Input Frequency: Up to 250 kHz.
Control Inputs: 3 control inputs for HTL / PNP signals.
Power Supply: 18 ... 30 VDC.
Auxiliary Output: 24 V for encoder supply.
Display: 186 x 64-pixel graphic display with event-dependent colour variations.
Housing: 3.78 x 1.89-inch norm panel housing with IP65 protection.
Operating Modes: Speed, position, timer, counter, or velocity application.
Additional Features: Scaling, average filter, start-up suppression, linearization with 24 control points
Options:
AC: Power supply 115 ... 230 V AC.
AO: 16-bit analog output, 4 control outputs, serial RS232 interface.
AR: 16-bit analog output, 4 control outputs, serial RS485 interface.
CO: 4 control outputs, serial RS232 interface.
CR: 4 control outputs, serial RS485 interface.
RL: 2 relay outputs.
