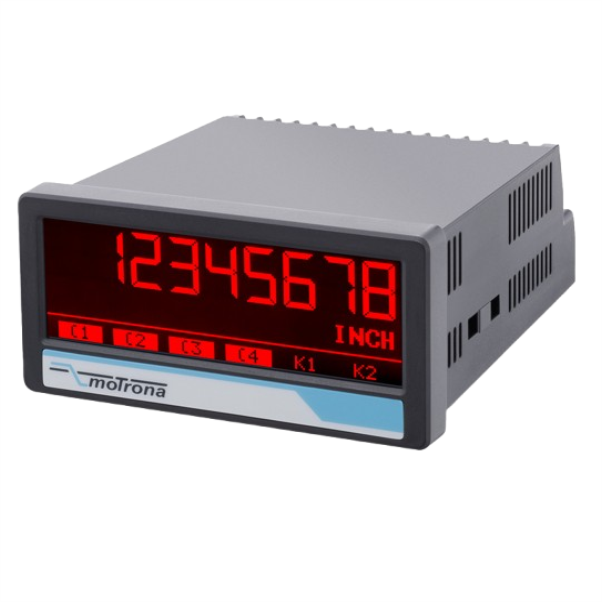

touchMATRIX® Digital Indicator (HTL - RS422) DX355
SKU: DX355
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The touchMATRIX® series' display devices come with a 186 x 64 pixel graphic display by default.
As a result, there are several ways to display plaintext, symbols, and units.
The red, green, and yellow visual representation is made possible by the LCD-backlight display.
These colour modifications can be employed event-dependently (e.g. in case of limit values) because of the intuitive parameterization.
The modular, arbitrarily combinable configuration with analog output, switching outputs, relay, serial interface (Modbus), and 115... 230 VAC demonstrates the highest level of connection and application versatility.
The touchMATRIX® displays are perfect for use in the food industry because of its IP65 and resistive touch panel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse input with format A, B, 90° [HTL], single channel as an option.
HTL inputs for encoder and sensors with NPN / PNP or NAMUR switching characteristics.
Input frequency up to 250 kHz.
3 control inputs for HTL / PNP signals.
Power supply 18 ... 30 VDC.
24 V auxiliary output for encoder supply.
3.78 x 1.89-inch norm panel housing and IP65 protection.
Bright and high-contrast display with event-dependent colour variations.
Emulation of a 7-segment display inclusively icons and units.
Intuitive and easy parameterization by plain text and touchscreen.
Multi-functional device for speed, position, timer, counter or velocity application.
Operating modes such as scaling, average filter, startup suppression.
Linearization with 24 control points.
Options:
Option AC: Power supply 115 ... 230 V AC.
Option AO: 16-bit analog output, 4 control outputs, serial RS232 interface.
Option AR: 16-bit analog output, 4 control outputs, serial RS485 interface.
Option CO: 4 control outputs, serial RS232 interface.
Option CR: 4 control outputs, serial RS485 interface.
Option RL: 2 relay outputs.
