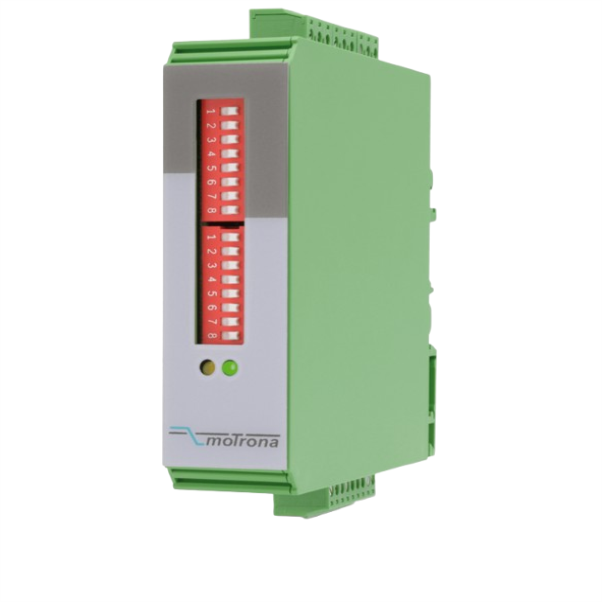

Direction and Standstill Monitor DZ210
SKU: DZ210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A small and multipurpose tool for tracking a machine's rotational direction and standstill is the Motrona DZ210 Direction and Standstill Monitor.
All typical incremental encoders and sensors, such as HTL, RS422, and TTL, can be used with it.
The DZ210 is well-suited for a wide range of industrial applications because to its quick response time and wide input frequency range.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Input: Format A, B, 90° [HTL] or A, /A, B, /B [RS422], also possible for single channel.
Input Frequency: Up to 500 kHz.
Outputs:
2 potential-free change-over relay outputs (forward, reverse, and zero motion).
2 transistor outputs with High-Side-Driver, short-circuit-proof.
Power Supply: 17 ... 30 VDC.
Housing: Snap-on housing for top hat rail (according to EN 60715).
Setup: Via 2 front-side DIL switches for input characteristic and standstill definition.
Response Time: Less than 1 ms at frequencies greater than 1 kHz.
