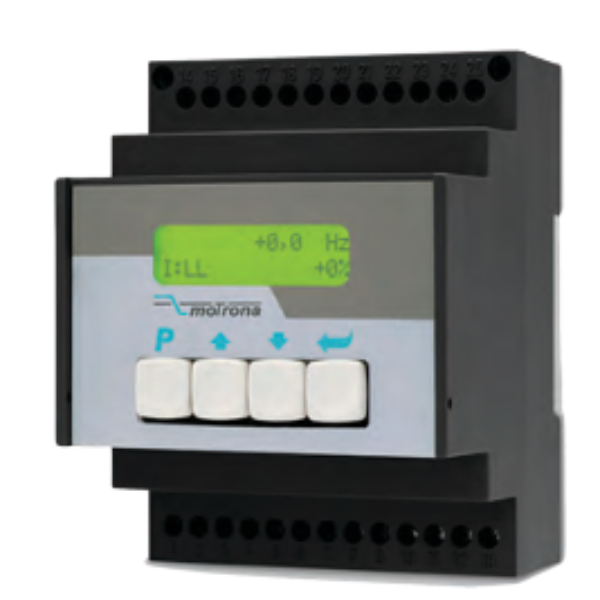

Speed Monitor with 3 Output Relays and Analog Output DZ260
SKU: DZ260
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For dependable overspeed, under speed, standstill, and rotational direction tracking, the Motrona DZ260 is a multipurpose, programmable speed monitor.
It is compatible with traditional rotary encoders and measuring systems since it supports several signal formats, such as HTL and RS422.
The device has a backlit LCD display and may be configured via the integrated RS232 interface on a PC or using buttons on the front panel.
Its snap-on housing ensures speedy setup without the need for extra attachments by making installation on a top hat rail simple.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Input:
Formats: A, B, 90° [HTL] or A, /A, B, /B [RS422].
Frequency: Up to 1 MHz.
Output Relays:
Number: 3 potential-free changeover contacts.
Capacity: 30 VDC / 2 A, 115 VAC / 0.6 A, 230 VAC / 0.3 A.
Analog Output:
Voltage: ±10 V or 0/4 … 20 mA.
Resolution: 14 Bit.
Power Supply:
Voltage: 17 … 30 VDC.
Auxiliary Output: +5 V for TTL encoders.
Housing:
Type: Snap-on for top hat rail (EN 60715).
Display: Backlit LCD.
Setup: Via keys or PC (RS232 interface).
