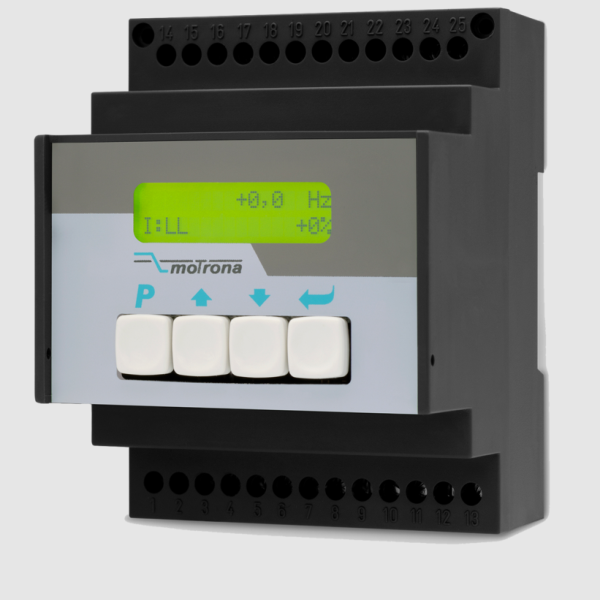

Speed Monitor with 3 Output Relays DZ267
SKU: DZ267
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Motrona DZ267 Speed Monitor is made to precisely track speed in industrial settings while maintaining dependability and safety.
It can be used with RS422/TTL sensors and incremental HTL encoders.
Although it lacks an analog output, the DZ267 is a more affordable option because it is like the DZ260 in all fundamental features and design.
Applications needing quick reaction times and accurate overspeed, under speed, rotational direction, and standstill monitoring will love this monitor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Input: Format A, B, 90° [HTL] or A, /A, B, /B [RS422], also possible for single channel.
Input Frequency: Up to 1 MHz.
Outputs:
3 potential-free change-over contact output relays.
Power Supply: 17 ... 30 VDC.
Auxiliary Voltage Output: +5 V for the supply of TTL encoders.
Housing: Snap-on housing for top hat rail (according to EN 60715).
Display: Backlit LCD display.
Setup: Via keys or PC using the serial RS232 interface.
