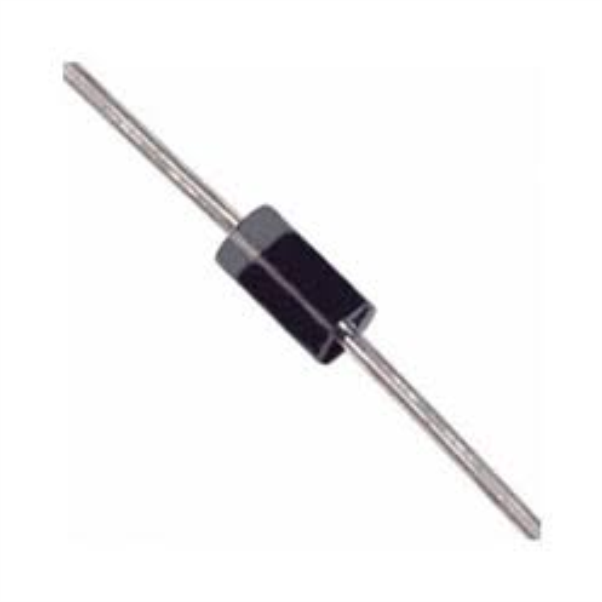

FR107 1000v Fast Recovery Rectifier Diode
SKU: Dio-0073-B02
Sold by Select Automation
Final price R 0.76
R 0.66 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A diode is a semiconductor device that allows current to flow in only one direction. It has two terminals: an anode and a cathode. When a voltage is applied across these terminals, the diode conducts current if the voltage on the anode is higher than the cathode (forward bias). If the voltage is reversed, the diode blocks current flow (reverse bias). This unique property makes diodes essential components in various electronic circuits. They are commonly used for rectification (converting AC to DC), voltage regulation, signal demodulation, and protecting circuits from voltage spikes. Essentially, diodes act as one-way gates for electrical current.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Maximum repetitive peak reverse voltage (V_RRM): 1000 V
Maximum RMS voltage (V_RMS): 700 V
Maximum DC blocking voltage (V_DC): 1000 V
Maximum average forward rectified current (I_F(AV)): 1.0 A
Peak forward surge current, 8.3 ms single half sine-wave superimposed on rated load (I_FSM): 30 A
Maximum instantaneous forward voltage @ 1 A (V_F): 1.2 V
Maximum reverse current @ rated VR (I_R):
T_J=25°C: 5 µA
T_J=125°C: 150 µA
Maximum reverse recovery time (T_rr): 500 ns
Typical junction capacitance (C_j): 10 pF
Typical thermal resistance:
R_θJC: 8 °C/W
R_θJA: 65 °C/W
Operating junction temperature range (T_J): -55 to +150 °C
Storage temperature range (T_STG): -55 to +150 °C
