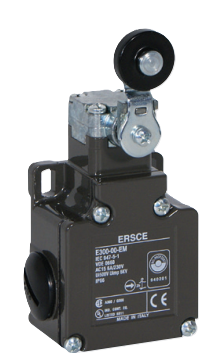

LIMIT SW 10A ROTARY ROLLER LEVER E10100IMRA
SKU: E10100IMRA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Industrial limit switches in the E100 series:
E series industrial limit switches are suited for most environmental circumstances thanks to its strong construction, IP66 certification, and decades of fieldwork experience.
General Features:
Rated thermal current (IEC947-5-1): 10A.
compliance with VDE 0660-200, EN 50047, UNI EN 1088, EN ISO 12100-1, IEC/EN 60947-5-1, and IEC 529.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: E100 series.
DESCRIPTION: Limit switch.
ACTUATOR TYPE: Offset rotary (metal) roller arm lever.
CONTACT CONFIGURATION: 1NO+1NC.
INDEX PROTECTION IP: IP66.
HOUSING MATERIAL: Diecast metal body.
CABLE ENTRY: 1 x bottom entry.
FIXING HOLE DISTANCE: 20/22 mm.
DIMENSIONS (H x W x D): 77.5 x 30.5 x 33 mm.
