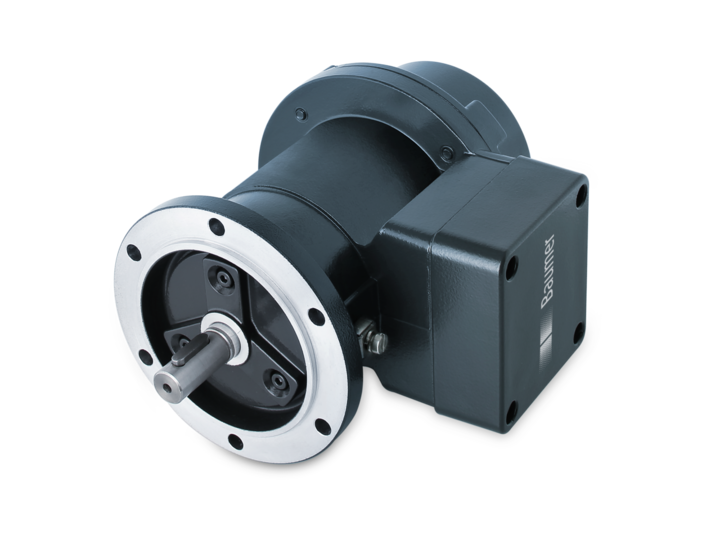

DC Tachogenerators, 60 mV per rpm
SKU: EExGP0.2L-4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft ø11 mm with EURO flange B10:
ATEX/Tachogenerator.
Ex approved by ATEX II 2 G Ex db eb IIC T6 Gb.
Response time is low.
Open-circuit voltage ranges from 20 to 150 mV per rpm.
A solid ø11 mm shaft.
EURO flange B10.
Patented Long Life technology provides high signal quality.
Recognition of a sense of rotation.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
DC voltage U0 [mV/rpm]: 60.
At current I [mA]: Open circuit.
Minimum load required depending on speed range [rpm]:
0-3000 RL [kΩ]: >2.7.
0-6000 RL [kΩ]: >11.
0-nmax RL [kΩ]: >15.
Maximum operating speed nmax [rpm]: 7000.
Armature resistance RA (20°C) [Ω]: 86.
Armature inductance LA [mH]: 390.
