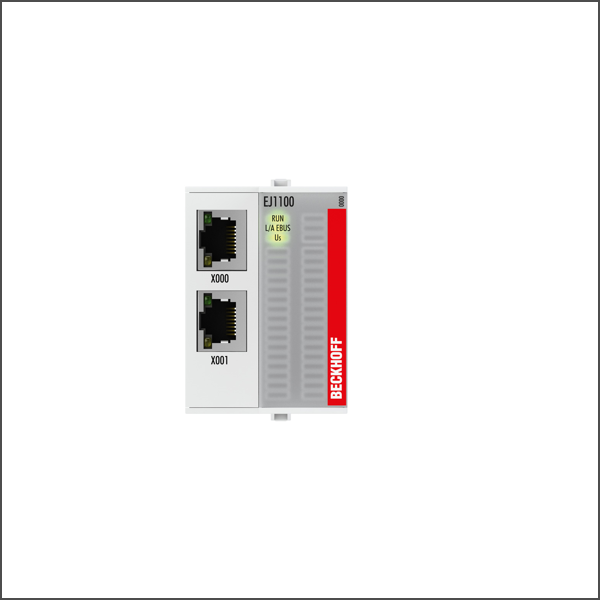

EJ1100 EtherCAT Coupler
SKU: EJ1100
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT plug-in modules. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A module station consists of a coupler and any number of EtherCAT plug-in modules, which are automatically detected and individually displayed in the process image.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of EtherCAT plug-in modules (EJxxxx) to 100BASE-TX EtherCAT networks
Distance between stations: max. 100 m (100BASE-TX)
Data transfer medium: Industrial Ethernet/EtherCAT cable (min. Cat.5), shielded
Protocol: EtherCAT
Delay: typ. 1 µs
Data transfer rates : 00 Mbit/s
Bus interface: 2 x RJ45
Power supply: 24 V DC (-15 %/+20 %)
Current consumption from US: 60 mA + (∑ E-bus current/7.2)
Current supply E-bus: 2200 mA
Electrical isolation: 500 V (power contact/supply voltage/EtherCAT)
Weight: approx. 65 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
