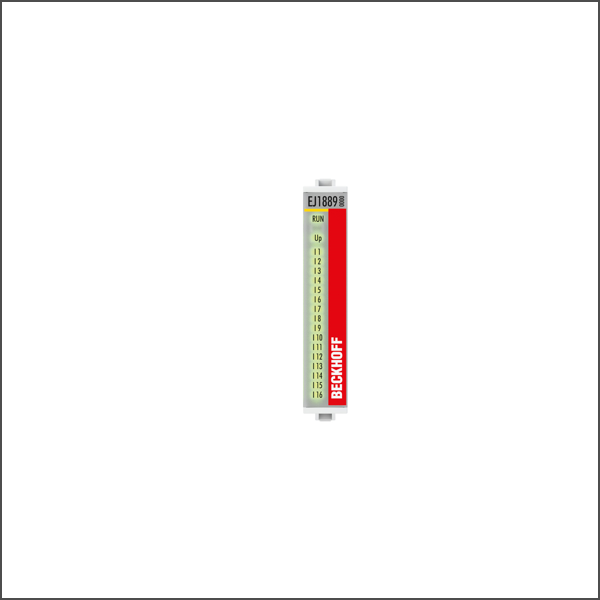

EJ1889 EtherCAT plug-in module
SKU: EJ1889
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ1889 digital input acquires binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT plug-in module contains 16 channels, whose signal state is indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Specification: ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Technology: Filter 3.0 ms
Number of inputs: 16
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: 18…30 V
“1” signal voltage: 0…7 V
Input current: typ. 3 mA
Input filter: typ. 3.0 ms
Current consumption E-bus: typ. 80 mA
Electrical isolation: 500 V (E-bus/field potential)
Special features: ground switching
Weight: approx. 30 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
