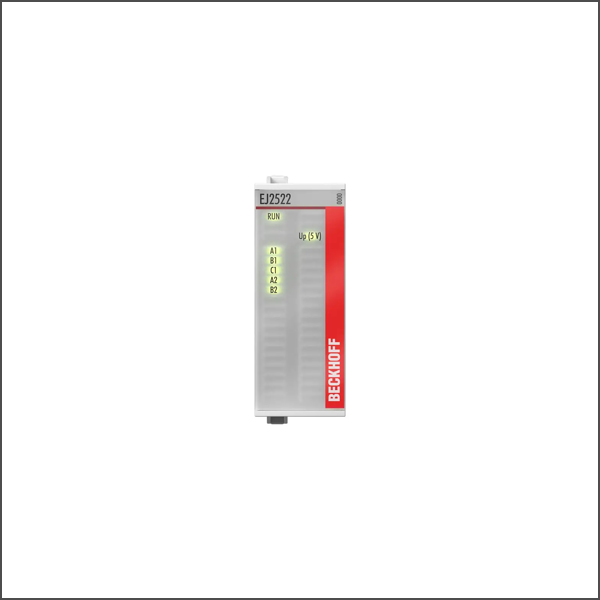

EJ2522 EtherCAT plug-in module
SKU: EJ2522
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ2522 incremental encoder simulation module (pulse train) outputs a frequency-modulable signal on two channels with four outputs. The signal can be used to control motor drivers or other signal receivers, which are controlled by single cycles. The pulse sequence and pulse number can be specified directly via the process data in the frequency.
Buy currently uses Select Automation shop pricing and checkout.
Technology: pulse train (frequency output)
Power supply: 24 V (-15 %/+20 %)
Number of outputs: 2 channel A/B, 1 channel A/B/C (4 differential outputs)
Output specification: RS422, differential, 50 mA, min. 120 Ω load
Load type: ohmic, min. 220 Ω
Distributed clocks: yes
Max. output current: RS422 specification, 50 mA
Short-circuit current: short-circuit proof
Base frequency: 0…4 MHz, 50 kHz default
Resolution: 16 bit (incl. sign, scaled via the set frequency range)
Step size: min. 10 ns (internal)
Auxiliary power current: typ. 50 mA (load dependent)
Current consumption E-bus: typ. 180 mA
Electrical isolation: 500 V (E-bus/field potential)
Special features: ABC incremental encoder simulation with connection to TwinCAT NC
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE
