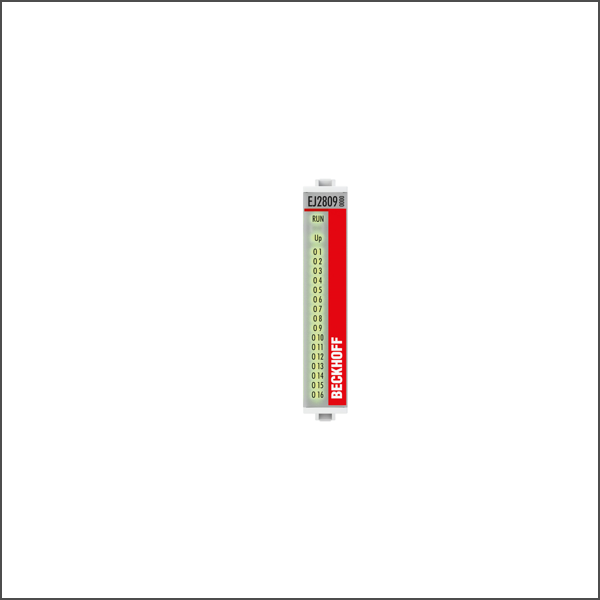

EJ2809 EtherCAT plug-in module
SKU: EJ2809
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ2809 EtherCAT plug-in module connects binary control signals from the automation device to the actuators at the process level with electrical isolation. The EJ2809 is protected against polarity reversal and processes load currents with outputs protected against overload and short-circuit. The module has 16 channels, whose signal states are indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Technology: Imax = 0.5 A
Number of outputs: 16
Rated load voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 0.5 A (short-circuit proof) per channel
Short-circuit current: typ. < 2 A
Reverse voltage protection: yes
Breaking energy: < 150 mJ/channel
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Auxiliary power current: typ. 30 mA + load
Current consumption E-bus: typ. 110 mA
Electrical isolation: 500 V (E-bus/field potential)
Weight: approx. 30 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL
