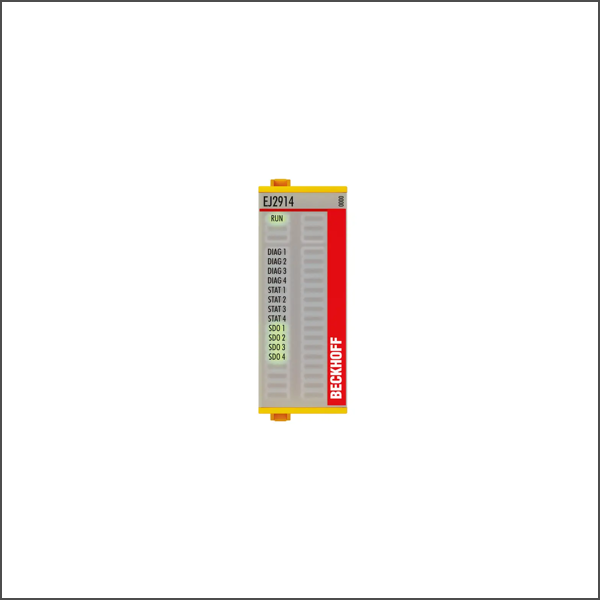

EtherCAT plug-in module, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic EJ2914
SKU: EJ2914
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ2914 EtherCAT plug-in module is a TwinSAFE component with outputs for actuators with 24 V DC. The module has four fail-safe outputs, which are controlled via FSoE by a TwinSAFE Logic-capable component. The EJ2914 has safety parameters to specifically adapt the functionality to the respective safety requirements. For example, test pulses can be configured with fine granularity for all channels.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: distribution board
Specification: link unit between safe input and output signals
Number of outputs: 4
Max. output current: 0.5 A
Protocol: TwinSAFE/Safety over EtherCAT
Fault response time: ≤ watchdog time (parameterizable)
Current consumption E-bus: typ. 260 mA
Safety standard: EN ISO 13849-1: 2015 (Cat. 4, PL e) and EN 61508: 2010 (SIL 3)
Weight: approx. 50 g
Protection rating: IP20
Design form: EtherCAT I/O plug-in module
Material: polycarbonate
Installation: on signal distribution board
Mechanical coding: EJ plug-in module: signal-specific coding pins on the housing,
signal distribution board: holes in the printed circuit board
Locking: latching lug in circuit board cut-out
Connection method: field wiring: application-specific wiring level on the signal distribution board,
EJ plug-in module: 2 x 20-pin socket strip
Dimensions (W x H x D): 24 mm x 66 mm x 55 mm
