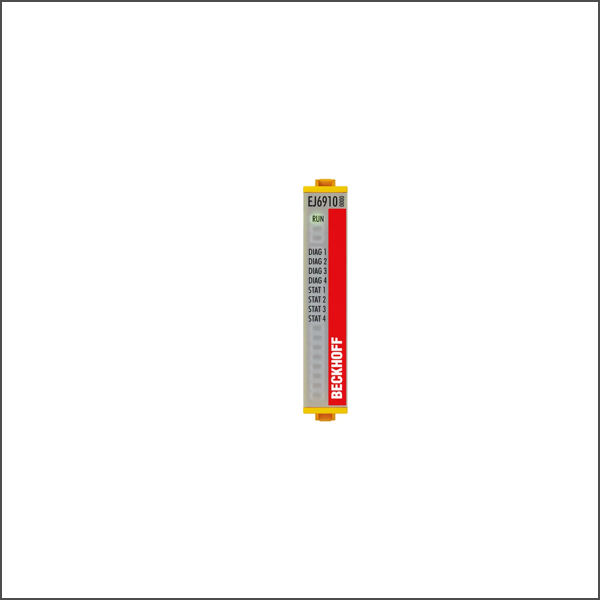

EtherCAT plug-in module EJ6910
SKU: EJ6910
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
With the EJ6910, the functionality of the EL6910 as the new generation of dedicated safety controllers is also available as an EtherCAT plug-in module. The EJ6910 offers a variety of certified function blocks to enable the safe processing of Boolean values and analog values and thus to realize even more complex safety applications.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: distribution board
Specification: link unit between safe input and output signals
Protocol: TwinSAFE/Safety over EtherCAT
Cycle time: approx. 1 ms/according to project size
Fault response time: ≤ watchdog time (parameterizable)
Current consumption E-bus: typ. 222 mA
Safety standard: EN ISO 13849-1: 2015 (Cat. 4, PL e) and EN 61508: 2010 (SIL 3)
Weight: approx. 30 g
Protection rating: IP20
Design form: EtherCAT I/O plug-in module
Material: polycarbonate
Installation: on signal distribution board
Mechanical coding: EJ plug-in module: signal-specific coding pins on the housing,
signal distribution board: holes in the printed circuit board
Locking: latching lug in circuit board cut-out
Connection method: field wiring: application-specific wiring level on the signal distribution board,
EJ plug-in module: 2 x 20-pin socket strip
Dimensions (W x H x D): 12 mm x 66 mm x 55 mm
