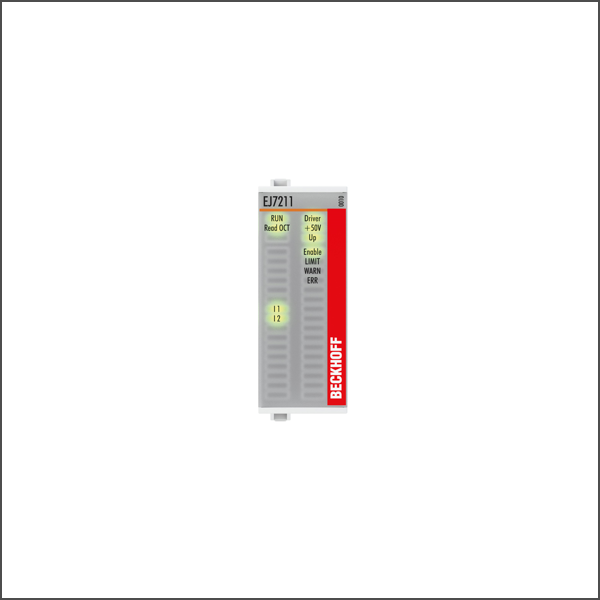

EJ7211-0010 EtherCAT plug-in module, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

Connection method: direct motor connection with OCT Number of inputs: 2 x end position, 1 x feedback Load type: permanent magnet-excited three-phase synchronous motor Number of channels: 1 Number of outputs: 1 x servomotor, 1 x motor brake Supply voltage electronics: 24 V DC (via distribution board) Supply voltage power: 8…48 V DC (via distribution board) Output current (rms): 4.5 A Peak current (rms): max. 9.0 A for 1 s Rotating field frequency: 0…599 Hz PWM clock frequency: 16 kHz Current controller frequency: 32 kHz Rated speed controller frequency: 16 kHz Output voltage motor brake: 24 V DC Output current motor brake: max. 0.5 A Auxiliary power current: no data Current consumption E-bus: typ. 130 mA Distributed clocks: yes Special features: compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug and play Safe stop functions – Electrical isolation: 500 V (E-bus/field potential) Weight approx. 50 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity 95 %, no condensation EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos.: IP20/see documentation Approvals/markings: CE, UL
