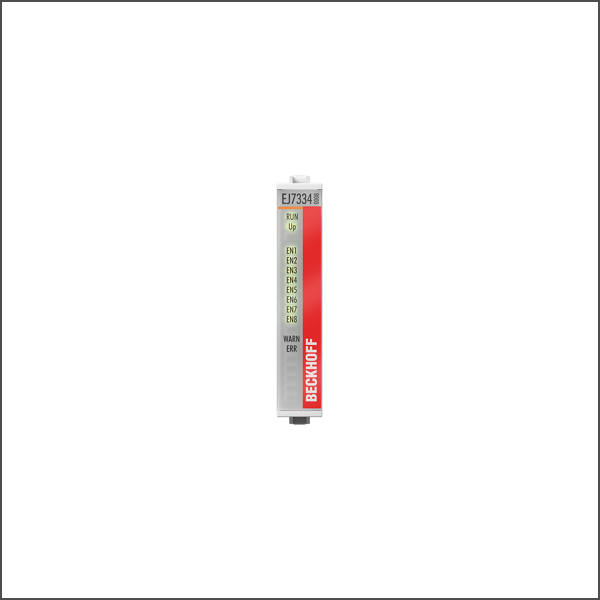

EJ7334-0008 EtherCAT plug-in module
SKU: EJ7334-0008
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ7334-0008 EtherCAT plug-in module enables direct operation of four DC motors and is electrically isolated from the E-bus. The speed is preset by a 16 bit value from the automation unit. The output stage is overload-proof. If direction reversal is not required, up to eight motors can be operated unidirectionally on the EJ7334-0008.
Buy currently uses Select Automation shop pricing and checkout.
Technology: compact drive technology
Connection method: direct motor connection
Load type: DC brush motors, inductive > 1 mH
Number of channels: 4/8
Number of outputs: 1 x DC motor per channel
Supply voltage electronics: 24 V DC (via distribution board)
Supply voltage power: 8…24 V DC (via distribution board)
Output current: ∑ 8.0 A, max. 3.0 A per channel (0…+40 °C)/ ∑ 6.0 A, max. 3.0 A per channel (0…+45 °C)
PWM clock frequency: 16 kHz
Duty factor: 0…98 % (voltage-controlled)
Resolution: max. 10 bit current, 16 bit speed
Auxiliary power current: typ. 20 mA + motor current
Current consumption E-bus: typ. 150 mA
Special features: up to eight motors can be operated unidirectionally
Electrical isolation: 500 V (E-bus/field potential)
Weight: approx. 30 g
Operating/storage temperature: 0…+45 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE
