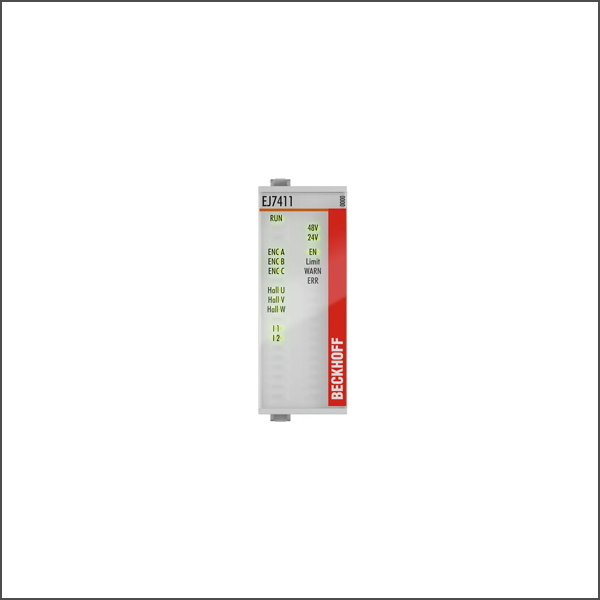

EJ7411 EtherCAT plug-in module
SKU: EJ7411
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EJ7411 EtherCAT plug-in module provides high control performance in a very compact design for the medium output range of BLDC motors. Due to the fast control technology and the connection of an incremental encoder, both very high speed profiles and dynamic positioning tasks can be implemented. Maximum operational reliability is provided through the monitoring of numerous parameters, such as overvoltage, undervoltage, overcurrent, module temperature or motor load via the calculation of an I²T model.
Buy currently uses Select Automation shop pricing and checkout.
Technology: compact drive technology
Connection method: direct motor connection + feedback
Number of inputs: 2 x end position, 1 x encoder, 3 x Hall effect sensor
Load type: DC motors
Number of channels: 1
Number of outputs: 1 x BLDC motor, 1 x motor brake, 1 x sensor supply, 1 x encoder supply
Supply voltage electronics: 24 V DC (via distribution board)
Supply voltage power: 8…48 V DC (via distribution board)
Output current: 4.5 A (Irms)
PWM clock frequency: 16 kHz
Rotating field frequency: 0…599 Hz
Current consumption power contacts: typ. 50 mA + holding current motor brake
Current consumption E-bus: typ. 120 mA
Distributed clocks: yes
Special features: compact and system-integrated
Electrical isolation: 500 V (E-bus/field potential)
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE
