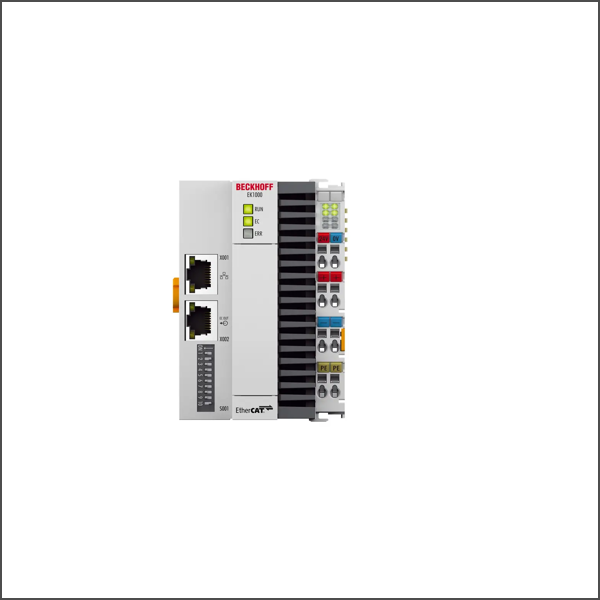

EK1000 EtherCAT TSN Coupler
SKU: EK1000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK1000 EtherCAT Coupler supports EtherCAT communication via switched Ethernet networks, such as TSN networks (Time-Sensitive Networking), and allows for connecting various EtherCAT Terminals from the wide range of I/Os with standard network technology.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to TSN networks
Networks: mode 1: for unmanaged switch networks; mode 2: for TSN networks (in preparation)
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 100 m (100BASE-TX)
Number of EtherCAT Terminals: up to 65,534
Protocol: EtherCAT Open Mode
Data transfer rates: 100 Mbit/s
Configuration: not required
Bus interface: X001 (RJ45) = 100 Mbit/s Ethernet (TSN); X002 (RJ45) = 100 Mbit/s EtherCAT (EK1100 e.g.)
Power supply: 24 V DC (-15 %/+20 %)
Input current: typ. 120 mA + (total E-bus current)/4
Current supply E-bus: 2 A
Power contacts: max. 24 V DC/max. 10 A
Electrical isolation: 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE
