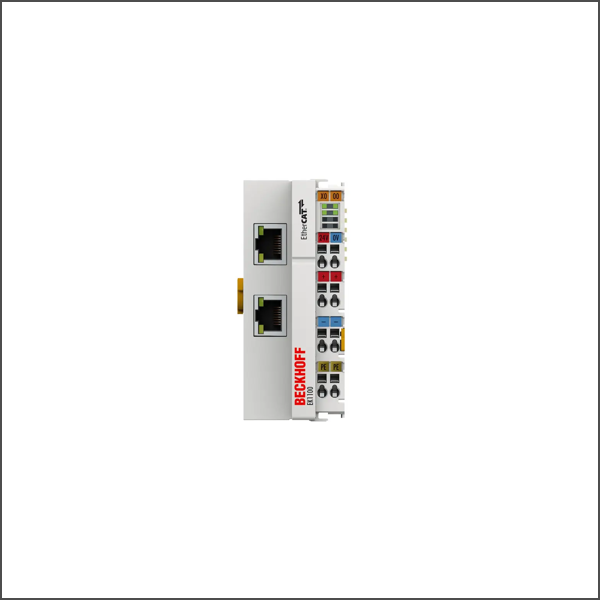

EK1100 EtherCAT Coupler

Task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded Distance between stations: max. 100 m (100BASE-TX) Number of EtherCAT Terminals: up to 65,534 Protocol: EtherCAT Delay: approx. 1 µs Data transfer rates: 100 Mbit/s Bus interface: 2 x RJ45 Power supply: 24 V DC (-15 %/+20 %) Current consumption from US: 70 mA + (∑ E-bus current/4) Current consumption from UP: load Current supply E-bus: 2000 mA Power contacts: max. 24 V DC/max. 10 A Electrical isolation: 500 V (power contact/supply voltage/Ethernet) Operating/storage temperature: -25…+60 °C/-40…+85 °C EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos.: IP20/variable Approvals/markings: CE, UL, ATEX, IECEx, DNV GL, cFMus Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc
