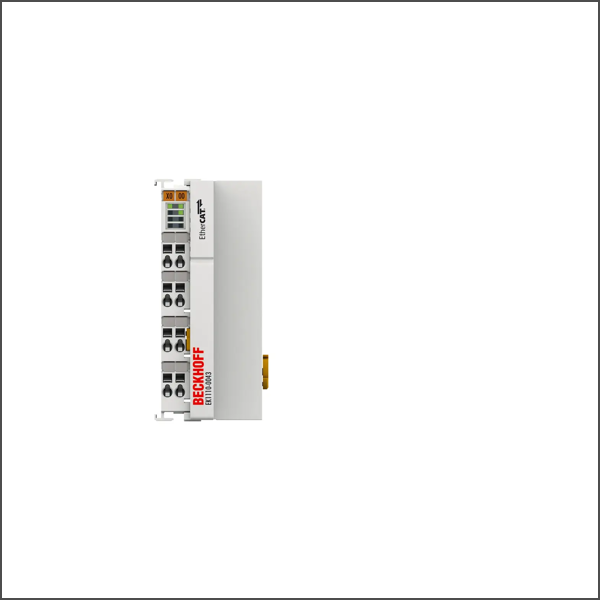

EK1110-0043 EtherCAT EJ coupler
SKU: EK1110-0043
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK1110-0043 EtherCAT EJ Coupler connects the compact Embedded PCs from the CX series and the attached EtherCAT Terminals with the EtherCAT plug-in modules on an application-specific circuit board (signal distribution board).
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: forwarding of E-bus signals to the signal distribution board (EJ board)
Data transfer medium: PCB tracks on the signal distribution board
Data transfer rates: 100 Mbit/s
Bus interface: plug connector on the rear side of the EtherCAT EJ coupler
Power supply: from E-bus, Embedded PC power supply module
Current consumption E-bus: typ. 50 mA
Electrical isolation: 500 V (supply voltage/Ethernet)
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE
