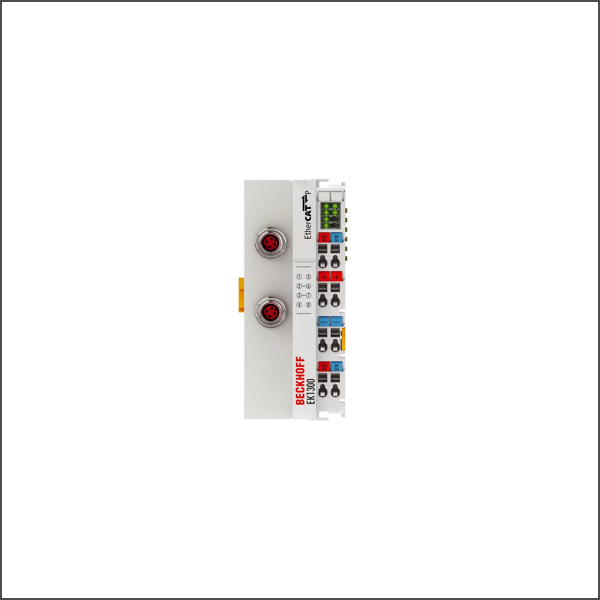

EK1300 EtherCAT P coupler
SKU: EK1300
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK1300 EtherCAT P coupler integrates the EtherCAT Terminals into the EtherCAT P network. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.
Special features:
Connection technology: 2 x P-coded M8 sockets.
Power supply via EtherCAT P connection.
Number of EtherCAT Terminals in the overall system: up to 65,535.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT P networks
Data transfer medium: EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Power supply: from EtherCAT P (24 V DC for US and UP)
Total current: from EtherCAT P, max. 3 A per US and UP
Current consumption from US: 40 mA + (∑ E-bus current/4)
Current consumption from UP: typ. 4 mA
Current supply E-bus: 2000 mA
Current rating per port: max. 3 A per US and UP
Electrical isolation: 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
