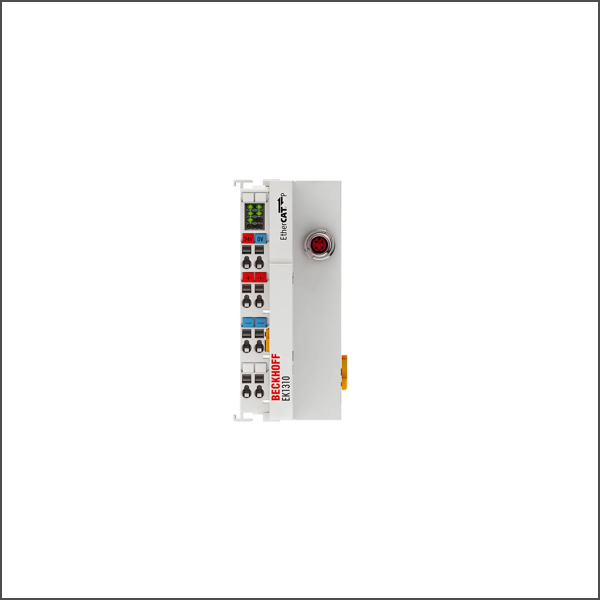

EK1310 1-port EtherCAT P extension with feed-in
SKU: EK1310
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK1310 EtherCAT P power supply offers the option of converting from an EtherCAT segment, which is configured via an EtherCAT Coupler or an Embedded PC from the CX series, to EtherCAT P or extending an EtherCAT P network in line topology.
Special features:
Connection technology: 1 x P-coded M8 socket.
Conversion from EtherCAT to EtherCAT P.
Extension of an EtherCAT P network in line topology.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: conversion of the E-bus signals to 100BASE-TX Ethernet for feed-in in the EtherCAT P network
Data transfer medium: EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface: 1 x M8 socket, shielded, screw type, P-coded
Power supply: external feed-in: 24 V DC for US and UP
Total current: max. 3 A per US and UP
Current consumption from US: typ. 3 mA
Current consumption from UP: typ. 3 mA
Current rating per port: max. 3 A per US and UP
Current consumption E-bus: typ. 110 mA
Electrical isolation: 500 V (supply voltage Us/supply voltage Up/EtherCAT)
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
