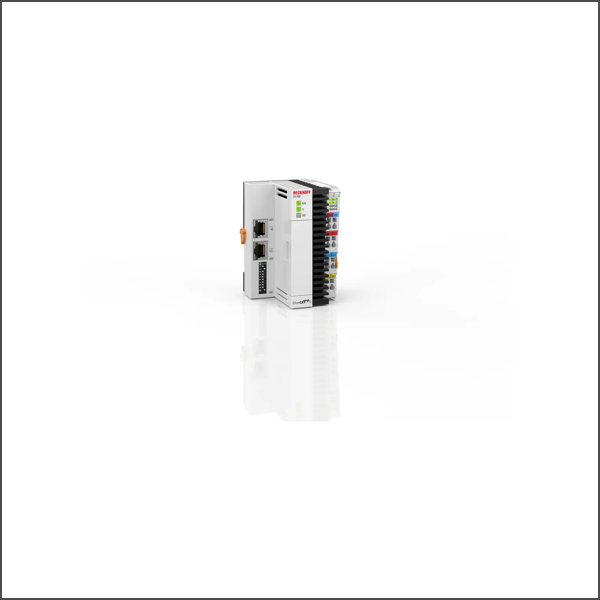

EK1400 EtherCAT G Coupler
SKU: EK1400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK1400 EtherCAT G Coupler connects EtherCAT G with the EtherCAT Terminals (ELxxxx). One station consists of an EK1400 Coupler, any number of EtherCAT Terminals and an EL9011 bus end cap or an EK1110 EtherCAT extension. The coupler provides the same functionality as a branch controller.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of EtherCAT Terminals to EtherCAT G networks
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 100 m (1000BASE-T)
Number of EtherCAT Terminals: up to 65,534
Type/number of peripheral signals: max. 4.2 GB addressable I/O points
Protocol: EtherCAT
Delay: approx. 1 µs
Data transfer rates: 1 Gbit/s
Configuration: TwinCAT
Bus interface: 2 x RJ45
Power supply: 24 V DC (-15 %/+20 %)
Power contacts: max. 24 V DC/max. 10 A
Electrical isolation: 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature: 0…+55 °C/-25…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE
