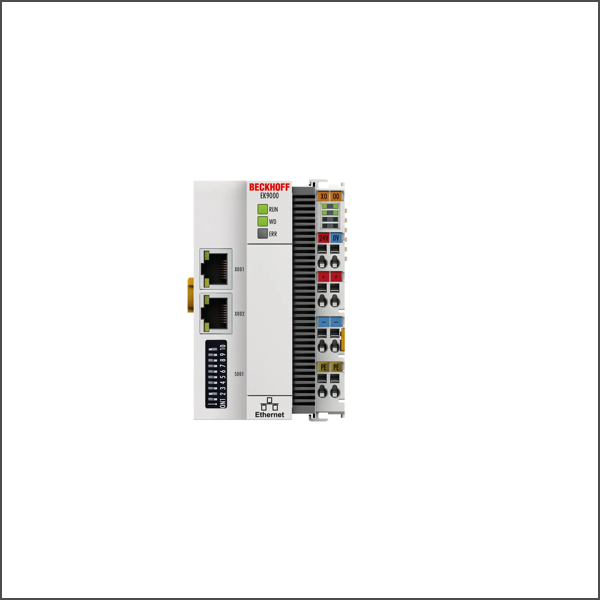

EK9000 ModbusTCP/UDP Bus Coupler

Task within EtherCAT system: coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to Ethernet networks Number of EtherCAT Terminals: depending on the process data size Type/number of peripheral signals: depending on the process data size Protocol: Modbus TCP, Modbus UDP Data transfer rates: 100 Mbit/s Configuration: not required Bus interface: 2 x RJ45 (switched) Power supply: 24 V DC (-15 %/+20 %) Input current: typ. 120 mA + (total E-bus current)/4 Current consumption E-bus: up to 2 A Power contacts: max. 24 V DC/max. 10 A Electrical isolation: 500 V (power contact/supply voltage/Ethernet) Dimensions (W x H x D): 64 mm x 100 mm x 73 mm Operating/storage temperature: -25…+60 °C/-40…+85 °C EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos.: IP20/variable Approvals/markings: CE, UL, ATEX, IECEx Ex marking : ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
