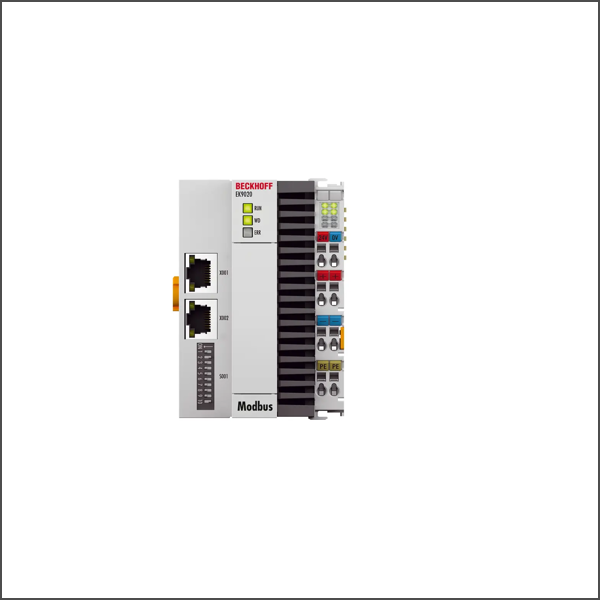

EK9020 Modbus TCP/UDP Bus Coupler
SKU: EK9020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EK9020 Bus Coupler is the successor of the EK9000. It connects Ethernet networks to the EtherCAT Terminals (ELxxxx) as well as the EtherCAT Box modules (EPxxxx) and converts the telegrams from Ethernet to the E-bus signal representation.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to Ethernet networks
Number of EtherCAT Terminals: depending on the process data size
Type/number of peripheral signals: depending on the process data size
Protocol: Modbus TCP, Modbus UDP
Data transfer rates: 100/1000 Mbit/s
Configuration: not required
Bus interface: 2 x RJ45 (switched)
Power supply: 24 V DC (-15 %/+20 %)
Input current: typ. 120 mA + (total E-bus current)/4
Current consumption E-bus: up to 2 A
Power contacts: max. 24 V DC/max. 10 A
Electrical isolation: 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature: -25…+60 °C/-40…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE
