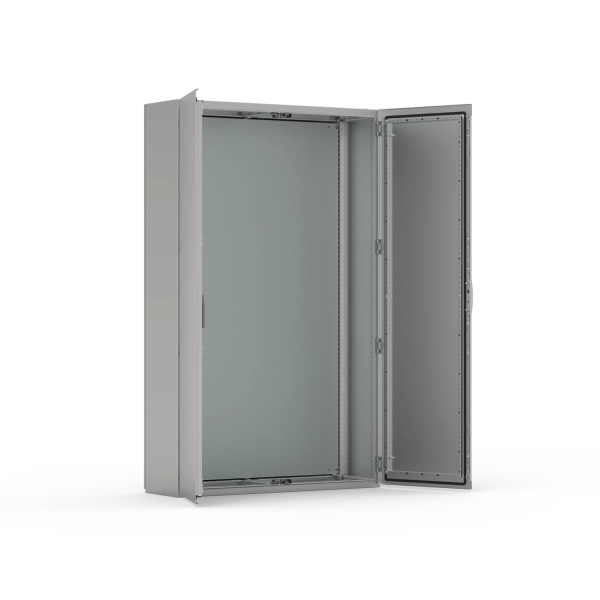

Multi-K Double door fixed sides stainless steel cabinet EKDS20164
SKU: EKDS20164
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Vent Hoffman Multi-K Double Door Fixed Sides Stainless Steel Cabinet EKDS20164 is made for settings where strong security and convenient access are essential.
Installing this cabinet in cramped areas where a single door would take up excessive room when opened is the perfect option.
Because of the way the double door design distributes the load, it can be used in many different industrial applications.
A rain hood is recommended for outdoor settings that are subject to precipitation.
condensation considering in areas where temperature swings occur quickly.
Food and beverage, pharmaceutical, and other industries needing exceptional protection and durability are good fits for this cabinet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body: AISI 304L / AISI 316L pre-grained stainless steel.
Door: 2 mm stainless steel.
Mounting Plate: 2.5 mm galvanized steel.
Construction:
Body: Folded and seam welded.
Door: Corner formed in one piece, surface mounted with 130° opening.
Hinges: Concealed AISI 304 stainless steel hinges with captive pin.
Sealing: Injected polyurethane gasket (AISI 316L version uses injected silicone gasket).
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism, espagnolette three-point locking.
Mounting Plate:
Marked vertically at 10 mm intervals for easy horizontal positioning.
Holes on top and bottom for cable fixing.
Fixed onto M8 press welded studs to the rear of the enclosure.
Adjustable depth using AMG accessory.
Protection:
IP 55 protection degree.
TYPE 12.
IK 10 impact resistance.
