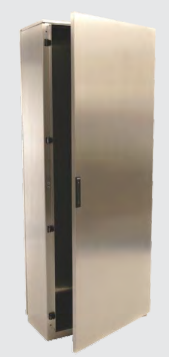

Multi-K Single door fixed sides stainless steel cabinet EKSS18084
SKU: EKSS18084
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For electrical and electro-mechanical applications, Elsteel's Multi-K Single Door Fixed Sides Stainless Steel Cabinet EKSS18084 is engineered to offer superior protection.
This cabinet can be used in many different types of situations, including ones that call for strong and long-lasting enclosures.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Stainless Steel: AISI 304 / AISI 316.
Finish: Wet grinded for a smooth, easy-to-clean surface.
Construction:
Fully welded construction for enhanced strength and durability.
Double lip edge for extra strength.
Suitable for standard DIN rails and compatible with terminals from any manufacturer.
Door: Surface mounted with 4 hinges allowing left- or right-hand opening.
Integrated depth profiles with hole pattern, allowing mounting plate adjustable in depth.
Protection:
Ingress Protection: IP66, ensuring excellent protection against dust and water.
Certified to IEC 62208 standards.
Impact Resistance: IK10.
Dimensions:
Height: 1800 mm.
Width: 800 mm.
Depth: 400 mm.
Ingress Protection: IP66.
Standards: IEC 62208.
Temperature Range: Suitable for a wide range of temperatures, ensuring reliability in various environments.
Mounting: Suitable for wall mounting with provided accessories.
Locking System: External espagnolette 4-point locking system with standard fitted double-bit 3 mm insert.
Applications: Suitable for outdoor use and environments such as the food industry or medical environments where aggressive detergents are used for cleaning.
