Multi-K Single door fixed sides stainless steel cabinet EKSS20104
SKU: EKSS20104
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

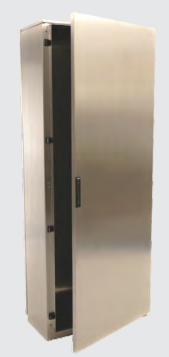

The stainless-steel cabinet with one door and fixed sides, model number EKSS20104, is made to provide sturdy protection for electrical and electronic components.
This small floor-standing enclosure provides excellent protection against dust and water, making it perfect for a variety of industrial settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body: AISI 304L / AISI 316L pre-grained stainless steel.
Door: 2 mm.
Rear Panel: 1.5 mm.
Bottom Plate: 1.5 mm stainless steel.
Mounting Plate: 3 mm galvanized steel.
Construction:
Body: One-piece enclosure body with integrated depth profiles and hole pattern for adjustable mounting plate.
Door: Surface mounted with four hinges allowing left or right-hand opening, including door frame with 25 mm hole pattern and earthing studs.
Rear Panel: Fitted by M6 torx screws with standard facilities for rear door mounting.
Bottom Plate: One-piece bottom plate with injected polyurethane gasket to ensure maximum sealing.
Mounting Plate: Double folded and slides into position, adjustable in depth by steps of 25 mm with the MPD02 accessory.
Locking Mechanism:
External espagnolette 4-point locking system.
Standard double-bit 3 mm insert.
Standard inserts, cylinders, lift handles, and T-handle available as accessories.
Earthing:
Door equipped with separate welded earthing studs.
Earthing to the frame can be accomplished using the ECF accessory.
Protection: IP 66 | TYPE 4X, 12 | IK 10.
Finish:
400 pre-grained stainless steel.
Unpainted.
Dimensions:
Height: 2000 mm.
Width: 1000 mm.
Depth: 400 mm.
Panel Size: 2000 x 1000 mm.
Weight: 160 kg.
Industry Standards:
UL 508A Listed; Type 4X, 12; File No. E92044.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4X, 12; File No. E92044.
NEMA/EEMAC Type 4X, 12.
CSA, File No. 1442951: Type 4X, 12.
IEC 62208 IP66.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
This enclosure is well-suited for environments requiring high protection against water and dust, such as food and beverage, pharmaceuticals, and other industrial applications.
