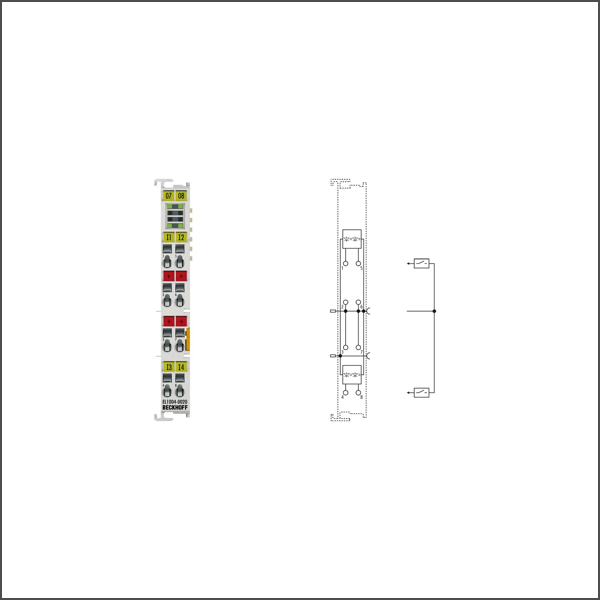

EL1004-0020 EtherCAT Terminal
SKU: EL1004-0020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1004-0020 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes.
Special features:
Input specification type 1/3.
No bouncing due to mechanical switches thanks to 3 ms input filter.
Direct connection of four 2-wire sensors via additional +24 V connection points.
Electrical isolation of 2500 V (functional isolation) between test voltage on the E-bus and field voltage.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Specification: EN 61131-2, type 1/3
Number of inputs: 4
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Input filter: typ. 3.0 ms
Current consumption power contacts: typ. 2 mA + load
Current consumption E-bus: typ. 90 mA
Electrical isolation: 2500 V (E-bus/field potential)
Configuration: no address or configuration setting
Special features: Isolation voltage 2500 V DC (E-bus/field voltage)
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
