EL1012 EtherCAT Terminal
SKU: EL1012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

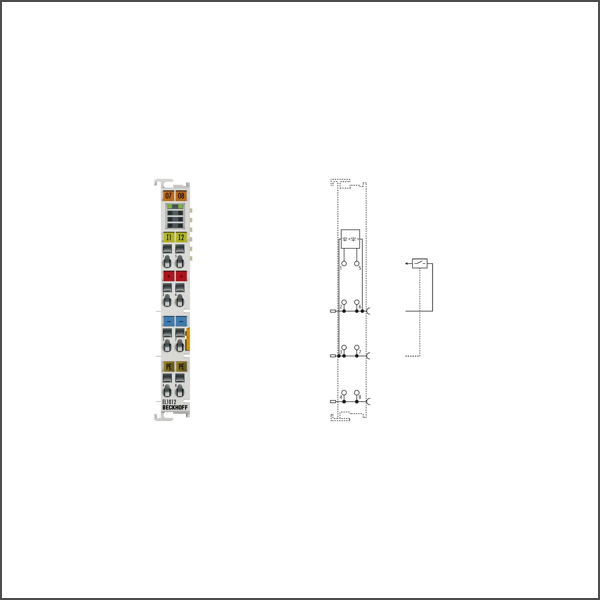

The EL1012 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.
Special features:
Input specification type 1/3.
Low delay due to fast 10 µs input filter.
Usable, for example, for inductive or capacitive sensors.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Specification: EN 61131-2, type 1/3
Number of inputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Input filter: typ. 10 µs
Current consumption power contacts: typ. 2 mA + load
Current consumption E-bus: typ. 90 mA
Electrical isolation: 500 V (E-bus/field potential)
Configuration: no address or configuration setting
Special features: 4-wire connection
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
