EL1094 EtherCAT Terminal
SKU: EL1094
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

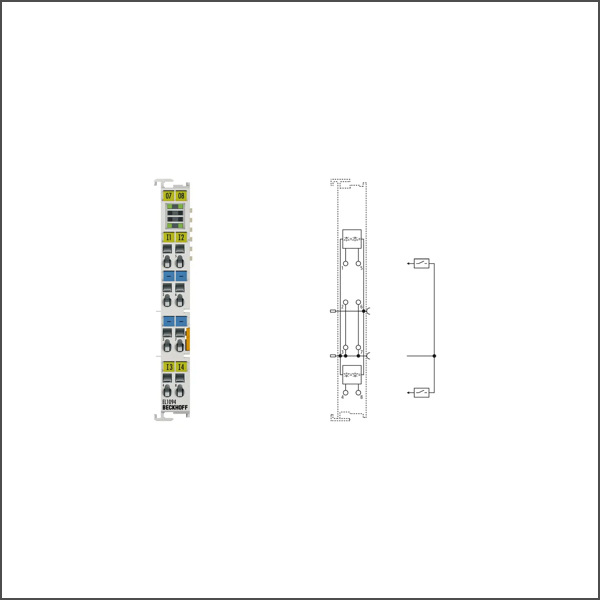

The EL1094 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Specification: ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs: 4
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: 18…30 V
“1” signal voltage: 0…7 V
Input current: typ. 3 mA
Input filter: typ. 10 µs
Current consumption power contacts: typ. 20 mA
Current consumption E-bus: typ. 90 mA
Electrical isolation: 500 V (E-bus/field potential)
Configuration: no address or configuration setting
Special features: 2-wire connection
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/IECEx: Ex ec IIC T4 Gc
