EL1134 EtherCAT Terminal
SKU: EL1134
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

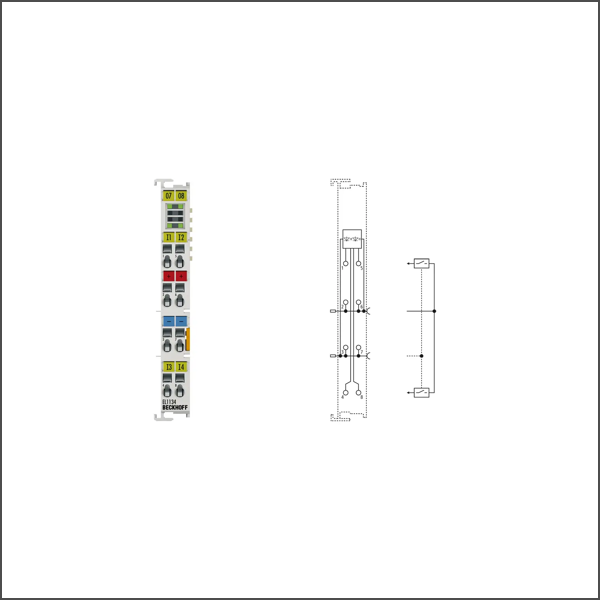

The EL1134 digital input terminal acquires the binary 48 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes. The 48 V supply voltage can be generated with the EL9190 power supply terminal, and fed into the power contacts.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-/3-wire
Number of inputs: 4
Nominal voltage: 48 V DC
“0” signal voltage: < 10 V (EN 61131-2, type 1)
“1” signal voltage: > 34 V (EN 61131-2, type 1)
Input current: typ. 3 mA (EN 61131-2, type 1)
Input filter: typ. 10 µs
Current consumption power contacts: typ. 10 mA + load
Current consumption E-bus: typ. 90 mA
Electrical isolation: 500 V (E-bus/field potential)
Configuration: no address or configuration setting
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX:II 3 G Ex nA IIC T4 Gc/IECEx:Ex ec IIC T4 Gc
