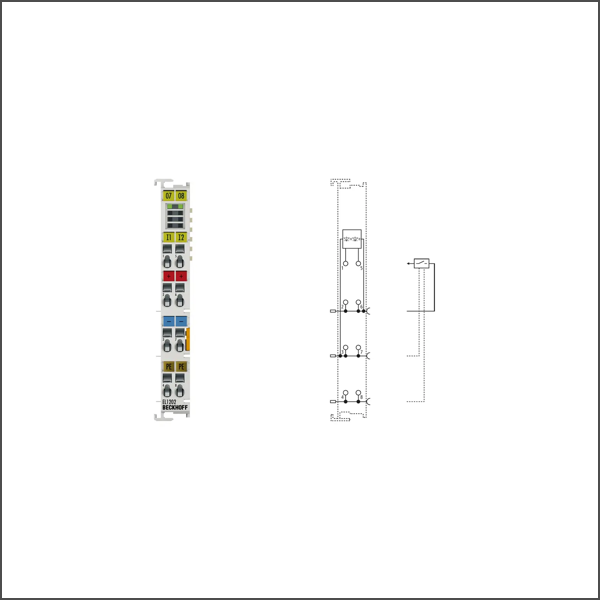

EL1202 EtherCAT Terminal
SKU: EL1202
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1202 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal contains two channels whose signal state is indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Specification: similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current
Number of inputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (similar to EN 61131-2, type 3)
“1” signal voltage: 11…30 V (similar to EN 61131-2, type 3)
Input current: typ. 3 mA (similar to EN 61131-2, type 3)
Input filter: typ. < 1 µs
Precision of timestamp in the terminal: 10 ns (+ input delay)
Distributed clock precision:
