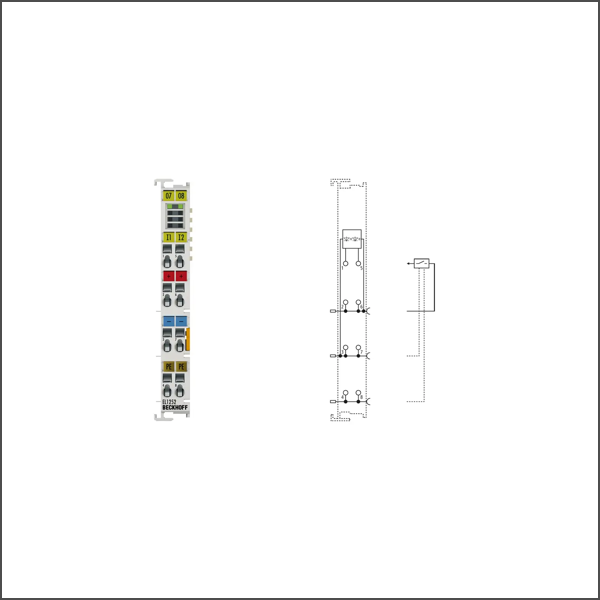

EL1252 EtherCAT Terminal
SKU: EL1252
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1252 digital input terminal acquires the fast binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the controller. The EtherCAT Terminal contains two channels whose signal state is indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Specification: similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current
Number of inputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (similar to EN 61131-2, type 3)
“1” signal voltage: 11…30 V (similar to EN 61131-2, type 3)
Input current: typ. 3 mA (similar to EN 61131-2, type 3)
Input filter: typ. < 1 µs
Resolution timestamp: 1 ns
Precision of timestamp in the terminal: 10 ns (+ input delay)
Distributed clock precision:
