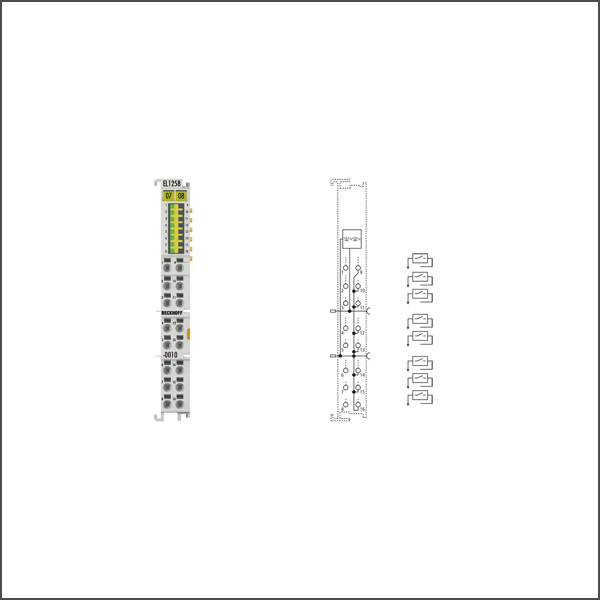

EL1258-0010 EtherCAT Terminal
SKU: EL1258-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 8-channel digital input terminal EL1258-0010 acquires fast binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The EL1258-0010 is the ground switching version of the EL1258 and offers not only a higher channel density compared to the EL1252, but also higher performance due to the multi-timestamp function.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Specification: ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs: 8
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: 18…30 V
“1” signal voltage: 0…7 V
Input current: typ. 3 mA
Input filter: typ. < 1 µs
Internal sampling/execution: < 10…40 µs, corresponds to 100…25 k detectable edges/s, dependent on configuration
Distributed clock precision:
