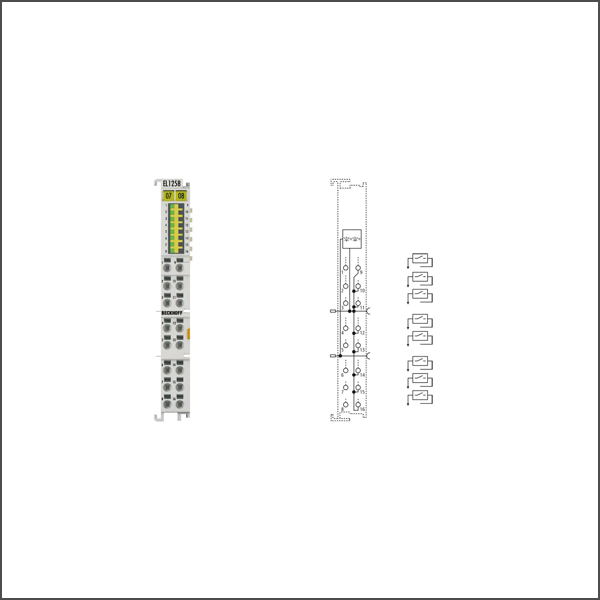

EL1258 EtherCAT Terminal
SKU: EL1258
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1258 digital input terminal acquires the fast binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the controller. Each EtherCAT Terminal has eight channels that indicate their signal state via light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Number of inputs: 8
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (IEC 61131-2, type 1/3)
“1” signal voltage: 11…30 V (IEC 61131-2, type 1/3)
Input current: typ. 3 mA (EN 61131-2, type 1/3)
Input filter: typ. < 1 µs
Internal sampling/execution: < 10…40 µs, corresponds to 100…25 k detectable edges/s, dependent on configuration
Distributed clock precision:
