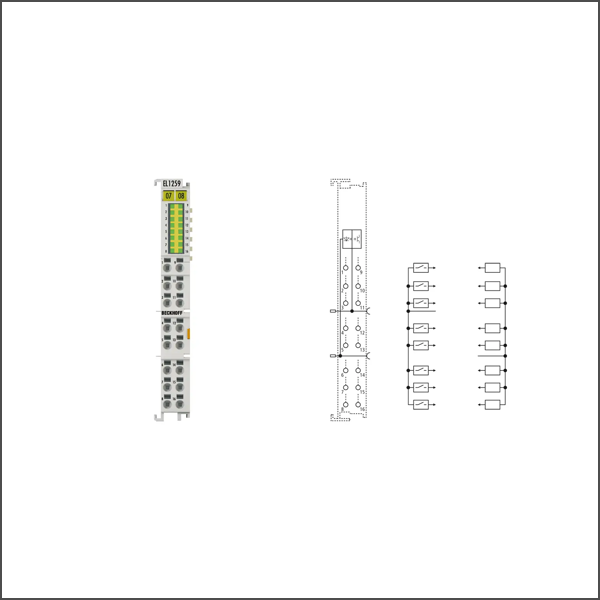

EL1259 EtherCAT Terminal
SKU: EL1259
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 16-channel EL1259 digital EtherCAT Terminal combines the functions of the EL1258 – eight multi-timestamp inputs – with those of the EL2258 – eight multi-timestamp outputs. The high channel density in conjunction with time stamping of the signals enables fast, efficient processes through optimized sensor and actuator control.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 1-wire
Number of channels: 8 inputs + 8 outputs
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (IEC 61131-2, type 1/3)
“1” signal voltage: 11…30 V (IEC 61131-2, type 1/3)
Input current: typ. 3 mA (EN 61131-2, type 1/3)
Input filter: typ. < 1 µs
Internal sampling/execution: < 10…40 µs, corresponds to 100…25 k detectable edges/s, dependent on configuration
Distributed clock precision:
